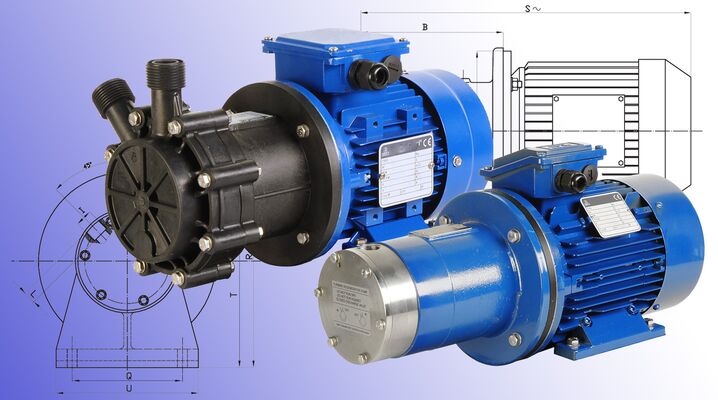

Impeller Pump

Magnetic Coupled Turbine Pumps (MTPG series)

Magnetic coupled turbine pumps (peripheral impeller pumps) generate high pressures at low flow rates - ideal where a conventional centrifugal pump would be hydraulically oversized. The MTPG series from VENTAIX is magnetically coupled and therefore leak-free, available in PP, PVDF or stainless steel for 0.2 to 9 m³/h and heads up to 80 m.

Magnetic Coupled Turbine Pumps: Low Flow Rate, High Pressure

Peripheral impeller pumps with magnetic coupling are used in many areas of industry. Wherever low flow rates are required at high pressure, magnetic coupled turbine pumps are the right choice. Thanks to the peripheral impeller, an increased gas content in the fluid is permissible without damaging the pump.

Operating Principle and Design

Magnetic coupled turbine pumps deliver liquids by means of a peripheral impeller and feature a magnetic coupling instead of a mechanical shaft seal. Due to the impeller design, the fluid passes over the vanes several times, which transfers energy to the medium and makes it possible to generate high pressures at comparatively low flow rates. The magnetic coupling, consisting of a drive magnet and an impeller magnet, transmits torque from the motor to the pump while hermetically sealing the pump casing – minimising the risk of leakage.

Materials

Our magnetic coupled turbine pumps of the MTPG series are available in plastic and stainless steel. Plastic pumps are made from polypropylene (PP) or polyvinylidene fluoride (PVDF): PP is particularly suitable for the chemical industry and the handling of various acids and alkalis, while PVDF is used when PP is not sufficiently resistant or when the process temperature exceeds 70 °C.

Stainless steel pumps (including 1.4301/AISI 304 and 1.4404/AISI 316L) are used for higher mechanical loads due to high system pressures or temperatures up to 160 °C and are also well suited to handling hydrocarbons. They can be designed for potentially explosive atmospheres up to ATEX zone 1.

Fields of Application

  • Chemical industry
  • Electroplating
  • Wastewater treatment
  • Pharmaceutical industry
  • Semiconductor industry
  • Food and beverage industry
  • Petrochemicals
  • Textile industry
  • Printing industry
  • Solar industry
  • Hydrogen production


0.2-9 m³/h
Flow rate
80 m
Max. head
-40/+160 °C
Temperature
25 bar
Max. system pressure

  • Leak-free thanks to magnetic coupling instead of a mechanical shaft seal
  • Reliable and low-maintenance as no mechanical seal is required
  • Chemically resistant thanks to plastic or stainless steel design
  • Pulsation-free due to impeller geometry and friction-free coupling
  • Gas content in the medium of up to 20 % possible




Frequently Asked Questions about Magnetic Coupled Turbine Pumps

When is a magnetic coupled turbine pump preferable to a magnetic coupled centrifugal pump?

Whenever low flow rates have to be delivered at high pressure – a range in which conventional centrifugal pumps would be hydraulically inefficient.

Can magnetic coupled turbine pumps handle media containing gas?

Yes, models of the MTPG series tolerate a gas content in the pumped medium of up to 20 % without sustaining damage.

Are magnetic coupled turbine pumps ATEX certified?

All pump models can be supplied ATEX certified and then meet the requirements of EU Directive 94/9/EC for potentially explosive atmospheres.
